DPHD-11344-001
Mô tả sản phẩm

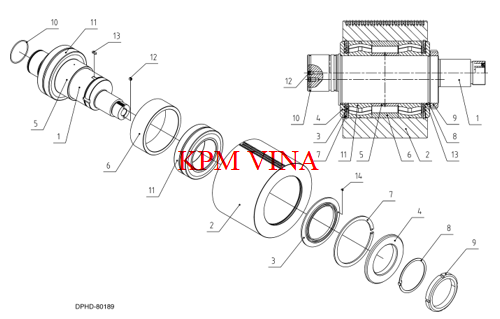

Press roll 228 assembly, slotted with closed end
| Item | Part. No. | C | Designation | Number | |
| 001 | DPHD-10801-010 | E1 | Eccentric shaft | 1 | |
| 002 | DPHD-11338-001 | V1 | Roll shell 228 slotted with closed end | 1 | |
| 003 | DPHD-10059-010 | E1 | Sealing ring | 2 | |
| 004 | DPHD-10060-010 | E1 | Bearing cover | 2 | |
| 005 | DPHD-10614-010 | E1 | Spacer ring, inside | 1 | |
| 006 | DPHD-10613-010 | E1 | Spacer ring, outside | 1 | |
| 007 | UNN -14028-140 | E3 | Retaining ring | 2 | |
| 008 | UNN -14023-025 | E3 | Tab washer D 130/175 | 1 | |
| 009 | UNN -12026-025 | E3 | Shaft nut M130x2.0 | 1 | |
| 010 | UNN -44021-277 | E3 | O-ring D 3.53×91.67 | 2 | |
| 011 | UXN -56010-222 | E1 | Self-aligning roller bearing D 130/210×64 | 2 | |
| 012 | UNN -10169-051 | E3 | Screw plug M10x1 | 2 | |
| 013 | UNN -28002-186 | E3 | Parallel key, form A 8/5×20 | 2 | |
| 014 | UNN -18009-112 | E3 | Parallel pin D 5 H8x8 | 2 | |
