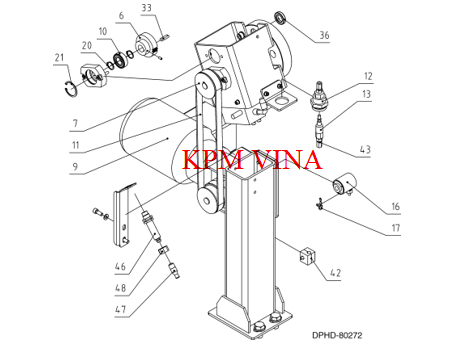

DPHD-80272-810
Mô tả sản phẩm
Roll adjustment drive
| Item | Part. No. | C | Designation | Number | |
| 006 | DPHD-10854-010 | E3 | Spur gear 30 teeth | 2 | |
| 007 | DPHD-10855-010 | E3 | Toothed lock washer 8 mm, 28 teeth | 2 | |
| 009 | DPHD-95247- | E3 | Selection bill of materials: Drive motors * | 1 | |
| 010 | UXN -56001-025 | E3 | Deep groove ball bearing D 20/42×12 | 3 | |
| 011 | UNN -64501-008 | E2 | Timing belt 960-8M-20 | 1 | |
| 012 | UXN -24049-001 | E2 | Pull-off coupling G 1/4″ | 1 | |
| 013 | UXN -24049-002 | E2 | Plug nipple G 1/4″ | 1 | |
| 016 | UXE -26655-011 | E2 | Rotary encoder, magnetic | 1 | |
| 017 | UXE -26655-012 | E1 | Set of spring plates | 1 | |
| 020 | UNN -14028-015 | E3 | Retaining ring | 4 | |
| 021 | UNN -14028-115 | E3 | Retaining ring | 3 | |
| 033 | UNN -28002-153 | E3 | Parallel key, form A 6/6×28 | 3 | |
| 036 | UNN -44009-004 | E3 | Shaft seal D 20/35×7 | 1 | |
| 042 | UNN -22009-006 | E3 | Clamp D 12 | 1 | |
| 043 | UNN -24028-031 | E3 | Union G 1/4″ | 2 | |
| 046 | UXE -26310-194 | E3 | Proximity switch, inductive | 1 | |
| 047 | UXE -24002-111 | E3 | Cable socket M12x1 with cable L = 10000 | 1 | |
| 048 | UXE -24002-150 | E3 | Unlocking protector for M12 | 1 | |
