DPHD-80354-810
Mô tả sản phẩm

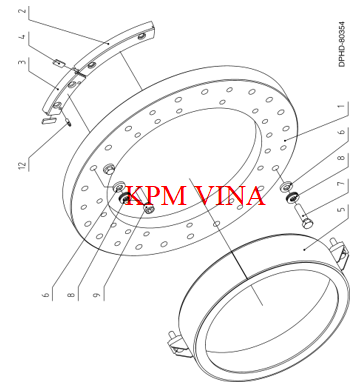

Reinforcing ring, assembly ROBUSTA
| Item | Part. No. | C | Designation | Number | |
| 001 | DPHD-11101-010 | E3 | Reinforcing ring | 1 | |
| 002 | DPHD-10005-010 | E1 | Clamping segment | 6 | |
| 003 | DPHD-10006-010 | E1 | Centering segment | 3 | |
| 004 | DPHD-10424-010 | E2 | Seal | 9 | |
| 005 | DPHD-80297-810 | E3 | Die cover ROBUSTA | 1 | |
| 006 | UXN -14002-013 | E3 | Washer D 24.5/50×8 | 18 | |
| 007 | UNN -10008-530 | E3 | Hexagon head bolt M24x90 | 12 | |
| 008 | UNN -48048-014 | E3 | Disk spring 25.4/50×3 | 72 | |
| 009 | UNN -10044-260 | E3 | Filister head screw M24x90 | 6 | |
| 012 | UXN -10084-642 | E3 | Grub screw M16x35 | 6 | |
