DPHD-80362-810
Mô tả sản phẩm

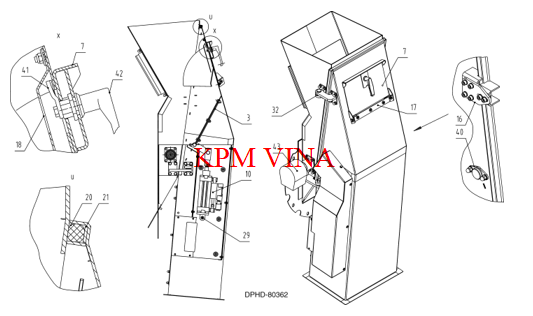

Inlet channel with bypass
| Item | Part. No. | C | Designation | Number | |
| 003 | DPHD-80375-810 | E3 | Bypass flap, screwed | 1 | |
| 007 | DPHD-80363-810 | E3 | Maintenance flap assembly | 1 | |
| 010 | DPHD-80102-810 | E1 | Pneumatic cylinder assembly | 1 | |
| 016 | DPHD-11069-010 | E3 | Locking plate | 1 | |
| 017 | DPHD-11117-010 | E3 | Hinge | 1 | |
| 018 | DPHD-11121-010 | E3 | Perforated sheet | 1 | |
| 020 | DPHD-80362-200 | E3 | Foam rubber profile UNR-57744-207 | 1 | |
| 021 | DPHD-80362-210 | E3 | Foam rubber profile UNR-53745-003 | 1 | |
| 029 | UNN -14028-011 | E3 | Retaining ring | 1 | |
| 032 | UNN -58000-218 | E3 | Flange bearing bushing D 16/22×12 | 4 | |
| 040 | UXN -54019-006 | E3 | Flange bearings | 2 | |
| 041 | UXN -32020-109 | E3 | Latch 35×20 | 1 | |
| 042 | UXN -32020-002 | E3 | Handle with housing | 1 | |
| 043 | UXE -26215-101 | E1 | Filling level display 24 V DC | 1 | |
