DPHD-80412-810
Mô tả sản phẩm

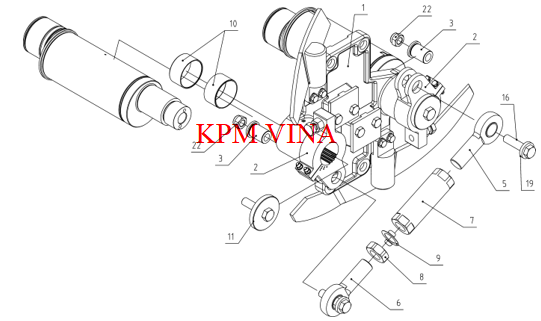

Manual roll adjustment
| Item | Part. No. | C | Designation | Number |
| 001 | DPHD-11297-010 | E3 | Base plate | 1 |
| 002 | DPHD-10952-010 | E3 | Adjustment lever | 2 |
| 003 | DPHD-10966-010 | E2 | Axis sleeve | 2 |
| 005 | UNN -20016-178 | E1 | Rod end M36x3 | 1 |
| 006 | UNN -20016-177 | E1 | Rod end M36x3 | 1 |
| 007 | DPHD-10747-010 | E3 | Connecting sleeve | 1 |
| 008 | DPHD-10748-010 | E3 | Nut M36x3 | 1 |
| 009 | DPHE-10512-010 | E3 | Tab washer | 1 |
| 010 | UNN -58004-053 | E3 | Plain bearing D 75/80×40 | 4 |
| 011 | UNN -14014-126 | E3 | Shaft end washer D 20.5/95×13 | 2 |
| 016 | UNN -10008-468 | E3 | Hexagon head bolt M20x80 | 4 |
| 019 | UNN -14009-011 | E3 | Washer D 21/44×8 | 2 |
| 022 | UNN -12015-113 | E3 | Locknut M20 | 2 |
