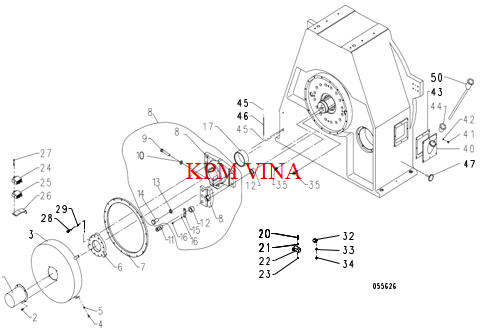

| Part |
Item |
Description |
| 1 |
131264360 |
Guard for grease distrubutor, aut. Lubrication |
|
131273488 |
Cover for guard, manual lubrication |
| 2 |
131045034 |
Cyl. Screw M6 x 16 A2 DIN 912 |
| 3 |
131239306 |
Guard for safety coupling |
| 4 |
100003471 |
Hex. Screw M10 x 16 DIN 933 |
| 5 |
131060196 |
Spring washer Ø10 DIN 127 B |
| 6 |
131517885 |
Shaft nut M125 x 2 |
| 7 |
131268931 |
Thrust ring steel |
| 8 |
131297801 |
Shear pin collar S2 complete |
| 8a |
131249534 |
Shear pin collar S2 machined 414 W 280 mm |
| 8b |
131268921 |
shear pin collar housing S2 machined |
| 9 |
131126820 |
hex head screw ISO4017 M20X120 8.8 ISO898-1 |
|
|
galvanize |
| 10 |
131124998 |
Spring washer DIN6796 -20 -galvanized 15-20M |
| 11 |
131239485 |
Shear pin “Ø17,5” L 86 W 25 MM |
| 12 |
131305653 |
Single flange bushing EXCELLO H-112-22 1 x 1-3/4″ x |
|
|
1-3/8″ |
| 13 |
131124963 |
spring washer :DIN127 -B -24 -galvanized |
| 14 |
100003294 |
Hex head screw ISO4017 M24X60 – 8.8 ISO898-1 |
|
|
galvanized |
| 15 |
131268922 |
Shear pin holder collar bracket S2 L 110 W 20 MM |
| 16 |
131126859 |
Hex head screw ISO4017 M8X20 8.8 ISO898-1 |
|
|
galvanize |
| 16a |
131124969 |
Spring washer DIN127 -B -8 -galvanized |
|
|
131196834 |
Slide bearing JF ø160 |
|
|
| 19 |
131267500 |
Support for switch |
| 20 |
131131465 |
Hex. Screw M5 x 55 FZB DIN 931 |
| 21 |
131126474 |
Facet disc ø5 FZB DIN 125 A |
| 22 |
131303860 |
Micro switch G0 21-11110-00 |
| 23 |
131126156 |
Nut M5 FZB DIN 934 |
