PM 717
Trang chủ » Tât cả sản phẩm » Phụ tùng máy cám viên ANDRITZ » PM 717

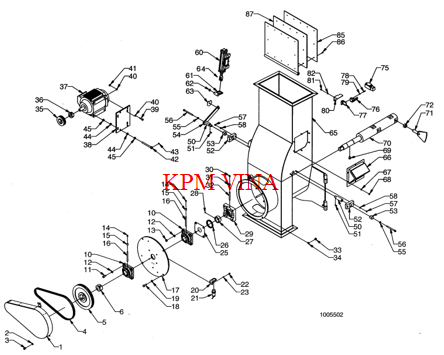

Mô tả sản phẩm
| 1 |
131268351 |
Guard for belt drive |
| 2 |
131126428 |
Facet disc Ø10 DIN 125 A |
| 3 |
100003471 |
Hex. screw M10 x 16 DIN 931 |
| 4 |
131190682 |
V-belt SPZ 1400 |
| 5 |
131190756 |
V-belt pulley SPZ 2 Ø280 TL2012 |
| 6 |
131165326 |
Taper bushing TL2012 – Ø40 |
| 10 |
131263242 |
Flange bearing UCF 210 |
| 11 |
100003146 |
Hex. screw M10 x 30 DIN 933 |
| 12 |
131126458 |
Facet disc Ø12 DIN 125 B |
| 13 |
100002075 |
Nut M12 DIN934 |
| 14 |
131160253 |
Grease nipple 1/8”RG |
| 15 |
131196410 |
Socket 1/8”RG L=17 |
| 16 |
131200552 |
Nipple pipe1/8” x 120 |
| 17 |
131263916 |
Gable plate |
| 18 |
100003709 |
Hex. screw M12 x 35 DIN 933 |
| 19 |
131126458 |
Facet disc Ø12 DIN 125 B |
| 20 |
131249529 |
Hinging for speed guard, incl. Pos. 22, 23 and 69 |
| 21 |
131003274 |
Speed guard XSA-V12373, 24 V DC |
|
131169659 |
Speed guard XSA-V12801, 24-220 V AC |
| 22 |
131131601 |
Hex. screw M6 x 14 DIN 933 |
| 23 |
131126427 |
Facet disc Ø6 DIN 125 B |
| 25 |
131263501 |
Plate for bearing sealing |
| 26 |
131196502 |
sealing ring 70 x 90 x 10 A – NB |
| 27 |
131263918 |
Wear ring (incl. pos. 28) |
| 28 |
131126001 |
Pivot screw M8 x 8 DIN 916 |
| 29 |
131262570 |
Housing for sealing ring |
| 30 |
131196526 |
Grease nipple 1/8”RG – 45gr. |
| 31 |
131196410 |
Socket 1/8”RG |
| 32 |
131200551 |
Nipple pipe1/8” x 100 |
| 33 |
100002075 |
Nut M12 DIN 934 |
| 34 |
131126458 |
Facet disc Ø12 DIN 125 B |
| 35 |
131190771 |
V-belt pulley SPZ 2 – Ø100 – TL1610 |
| 36 |
131165321 |
Taper bushing TL1610 – Ø28 |
|
|
And others |
| 37 |
131165158 |
Motor ABB 2,2 kW, 1400 o/min. |
|
|
And others |
| 38 |
131268340 |
Motor plate |
| 39 |
100003493 |
Hex. screw M10 x 35 DIN 933 |
| 40 |
131126428 |
Facet disc Ø10 DIN 125 A |
| 41 |
131122320 |
Nut M10 DIN 934 |
| 42 |
131122858 |
Eye bolt M12 x 140 DIN 444B |
| 43 |
131123150 |
Lock ring U12 x 1,00 DIN 471 |
| 44 |
100002075 |
Nut M12 DIN 934 |
| 45 |
131126458 |
Facet disc Ø12 DIN 125 B |
| 50 |
131274179 |
Journal |
| 51 |
131083227 |
Parallel key 6 x 6 x 25 A |
| 52 |
131268354 |
Block for bypass flap |
| 53 |
131165019 |
Bushing GLACIER |
| 54 |
131268353 |
Arm for bypass flap |
| 55 |
131122987 |
Facet disc Ø10 DIN 125 A |
| 56 |
131238978 |
Cyl. screw m10 x 120 DIN 912 |
| 57 |
131122319 |
Nut M8 DIN 934 |
| 58 |
131123014 |
Facet disc Ø8 DIN 125 A |
| 60 |
131827549 |
Air cylinder |
| 61 |
131268141 |
Cylinder mounting |
| 62 |
131078238 |
Lock ring U 20 x 1,20A DIN 471 |
| 63 |
131268411 |
Shield |
| 64 |
131147405 |
Clevis for air cylinder |
| 65 |
131272824 |
Forced feeder |
| 66 |
131293179 |
Hatch for forced feeder |
| 67 |
131123014 |
Facet disc Ø8 DIN 125 A |
| 68 |
131122319 |
Nut M8 DIN 934 |
| 69 |
131126852 |
Hex. screw M12 x 16 DIN 933 |
| 70 |
131250225 |
Shaft |
| 71 |
131243752 |
Mixing thread H121 complete incl. pos. 72 |
| 72 |
131122376 |
Nut M24 DIN934 |
| 75 |
131147684 |
Safety position stop XCS A701 |
| 76 |
131147683 |
Key for safety position stop |
| 77 |
131157308 |
Hinging for key |
| 78 |
100020504 |
Cyl. screw M5 x 25 DIN 912 |
| 79 |
131073874 |
Facet disc Ø5 DIN 125 A |
| 80 |
131261200 |
Hinging for key |
| 81 |
131044389 |
Cyl. screw M6 x 10 DIN 912 |
| 82 |
131123013 |
Facet disc Ø6 DIN 125 A |
| 85 |
131274205 |
Plate for bypass flap |
| 86 |
131045094 |
U screw M6 x 16 DIN7991 |
| 87 |
131172713 |
Felt |
