PM 717
Mô tả sản phẩm

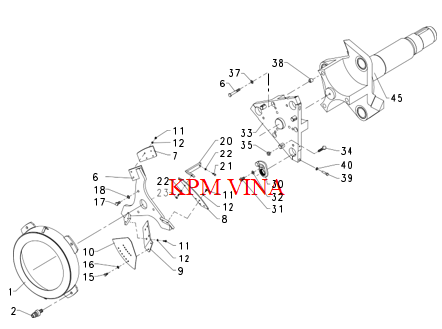

| Part | Item | Descriptiom | Qty |
| 1 | 131252800 131298575 |
Feed cylinder PM717W Feed cylinder PM717XW |
1 1 |
| 1 | 201975439 202268654 |
Feed cylinder HD (PM 717W) Feed cylinder HD (PM 717XW) |
1 1 |
| 2 | 131081780 | Socket head cap screw ISO4762 M20x45 12.9 ISO898-1 |
6 |
| 2 6 7 8 9 10 11 12 15 16 17 18 20 21 22 23 30 31 32 33 34 35 |
131518703 131264457 131264115 131264116 131264114 131263630 131042309 131060174 131045561 131060174 131126857 131124968 131237720 131042309 131060174 100003562 131390975 131126857 131123017 131274593 131158475 131122374 |
Bolt for feed cylinder complete Holder for deflector 1-3 Deflector 2 Deflector 3 Deflector 1 Guard for deflector Hex. Screw M12 x 25 A2 DIN 933 Spring washer Ø12 A2 DIN 127B Hex. Screw M12 x 20 A2 DIN 933 Spring washer Ø12 A2 DIN 127B Hex. Screw M16 x 50 A2 DIN 933 Spring washer Ø16 A2 DIN 127B Support for deflector 3 Hex. Screw M12 x 25 A2 DIN 933 Spring washer Ø12 A2 DIN 127B Hex. Screw M12 x 30 A2 DIN 933 Roller adjustment arm Hex. Screw M16 x 50 A2 DIN 933 Washer ø16 A2 DIN 9021 Front plate (PM717 XW) Adjusting bolt for roller adjustment Lock nut M16 A2 DIN 439 |
4 1 1 1 1 1 12 12 2 2 3 3 1 1 2 1 3 3 3 1 3 3 |
| 36 | 100002688 | Hex. Screw M20 x 130 FZB DIN 931 | 3 | |
| 37 | 131122982 | Tension disc Ø20, DIN 6916 | 3 | |
| 38 | 131188549 | Bushing | 3 | |
| 39 | 100003446 | Hex. Screw M16 x 80 A2 DIN 933 | 3 | |
| 40 | 131124968 | Spring washer Ø16 FZM DIN 127 B | 3 | |
| 45 | Roller main shaft (look at spare parts for roller main | |||
| shaft) | ||||
