PM 919
Mô tả sản phẩm

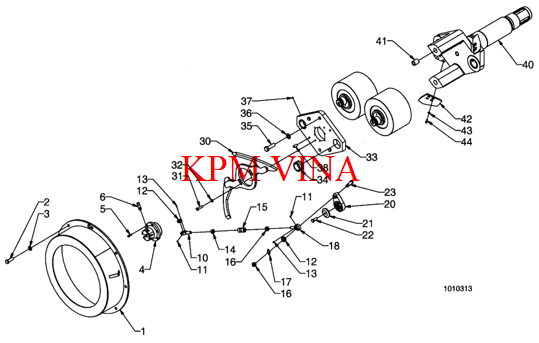

| Pos. | S-M DK No. |
S-M USA No. |
Description | No. off |
| 1 | 084459 | Feed cylinder | 1 | |
| 2 | 031637 | Hex. Screw M24 x 75 FZB DIN 931 | 8 | |
| 3 | 033850 | Tension disc Ø24 A2 HB200 | 8 | |
| 4 | 084339 | Journal | 1 | |
| 5 | 004613 | Cyl. screw M12 x 35 DIN912 | 6 | |
| 6 | 063166 | Pin for fork | 2 | |
| 10 | 068413 | Eye bolt M24 x 59 LH | 2 | |
| 11 | 017397 | Lubrication nipple M6 x 1 | 4 | |
| 12 | 063229 | Link bearing GE25PO | 4 | |
| 13 | 050632 | Cyl. Screw M6 x 10 ISO 7380 | 4 | |
| 14 | 065548 | Nut M24 links DIN934 | 2 | |
| 15 | 063143 | Rigging screw M24 | 2 | |
| 16 | 065539 | Nut M24 DIN934 | 4 | |
| 17 | 064610 | Disc for eye bolt | 2 | |
| 18 | 068412 | Eye bolt M24 x 59 RH | 2 | |
| 20 | 063130 | Roller adjustment arm | 2 | |
| 21 | 063139 | Thrust washer for roller adjustment arm | 2 | |
| 22 | 019349 | Hex. Screw M20 x 50 DIN 933 | 2 | |
| 23 | 063167 | Bolt for roller adjustment arm | 2 | |
| 30 | 063115 | Deflector | 1 | |
| 31 | 000468 | Hex. screw M16 x 70 DIN933 | 2 | |
| 32 | 566147 | Facet disc Ø16 DIN125A | 2 | |
| 33 | 063107 | Front plate (PM 919XW) | 1 | |
| 063549 | Front plate (PM 919TW) | Alt. | ||
| 34 | 063110 | Bushing | 2 | |
| 35 | 025922 | Hex. Screw M30 x 100 DIN 931 (PM 919XW) | 2 | |
| 059551 | Hex. Screw M30 x 160 DIN 931 (PM 919TW) | Alt. | ||
| 36 | 028946 | Facet disc ø30 DIN 125 A | 2 | |
| 37 | 016806 | Grease nipple | 2 | |
| 38 | 067556 | Pivot screw M20 x 45 DIN916 | 2 | |
| 40 | 062082 | Roller main shaft | 1 | |
| 41 | 061649 | Oil bronze bearing | 2 | |
| 42 | 032018 | Scraper knife | 2 | |
| 43 | 000674 | Hex. Screw M12 x 30 DIN 933 | 8 | |
| 44 | 016497 | Facet disc ø12 DIN 125 A | 8 |
