PM 919
Mô tả sản phẩm

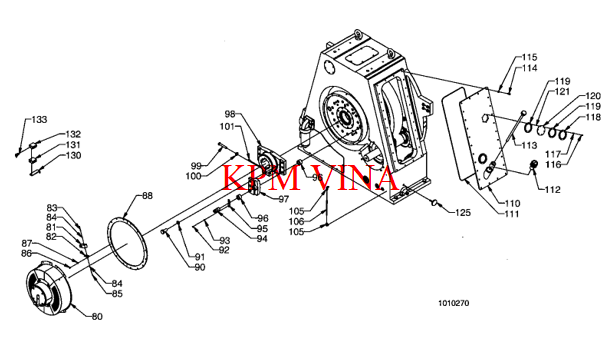

| Pos. | S-M DK No. |
S-M USA No. |
Description | No. off |
| 80 | 084486 | Guard for safety coupling | 1 | |
| 81 | 033761 | Micro switch G0 21-11110-00 | 1 | |
| 82 | 085650 | Support for switch | 1 | |
| 83 | 051445 | Hex. screw M5 x 55 DIN 931 | 2 | |
| 84 | 012656 | Facet disc ø5 FZB DIN 127 B | 4 | |
| 85 | 006052 | Nut M5 DIN 934 | 2 | |
| 86 | 505175 | Hex. screw M8 x 10 DIN 933 | 2 | |
| 87 | 004199 | Spring washer Ø8 DIN 127 B | 2 | |
| 88 | 084482 | Distance ring | 2 | |
| 90 | 002928 | Hex. screw M30 x 60 DIN 933 | 6 | |
| 91 | 005552 | Spring washer Ø30 DIN 7980 | 6 | |
| 92 | 000820 | Hex. screw 38 x 20 DIN 933 | 4 | |
| 93 | 004199 | Spring washer Ø8 DIN 127 B | 4 | |
| 94 | 030217 | Shear pin | 2 | |
| 95 | 084211 | Pin holder for shear pin | 2 | |
| 96 | 021978 | Bushing A38 x 40 DIN 172 | 4 | |
| 97 | 084216 | Safety house | 2 | |
| 98 | 084210 | Safety coupling | 1 | |
| 99 | 044501 | Hex. screw M20 x 120 DIN 933 | 2 | |
| 100 | 041540 | Spring washer Ø20 DIN 6796 | 2 | |
| 101 | 000371 | Pivot screw M12 x 35 DIN 916 | 1 | |
| 105 | 034774 | Angel ¼”RG – Ø10 | 2 | |
| 106 | 051159 | Hose PFA Ø10 x 1,5 – L = 350 | 1 |
| 110 | 084448 | Side cover | 1 | |
| 111 | 084537 | Packing for side cover | 1 | |
| 112 | 032798 | Filling plug Lentz | 1 | |
| 113 | 084463 | Oil plug with magnet | 1 | |
| 114 | 000552 | Cyl. Screw M12 x 25 8.8 DIN 912 | 26 | |
| 115 | 012518 | Facet disc Ø12 FZB DIN 125 A | 26 | |
| 116 | 027435 | Hex. screw M6 x 20 DIN 933 | 6 | |
| 117 | 000433 | Facet disc Ø6 FZB DIN 125 B | 6 | |
| 118 | 021919 | Flange for inspection glass | 2 | |
| 119 | 017909 | Packing for inspection glass | 4 | |
| 120 | 080495 | Inspection glass | 2 | |
| 121 | 047163 | O ring Ø5,0 x 1,5 VITON | 6 | |
| 125 | 030722 | Thermometer | 1 | |
| 130 | 035325 | Holder for grease distributor, aut. | 1 | |
| Lubrication | ||||
| 131 | 002361 | Grease distributor block SSV8-K | 1 | |
| 132 | 027347 | Grease distributor block SSV6-K | 1 | |
| 133 | 019536 | Swivel | 1 |
