PM 919
Mô tả sản phẩm

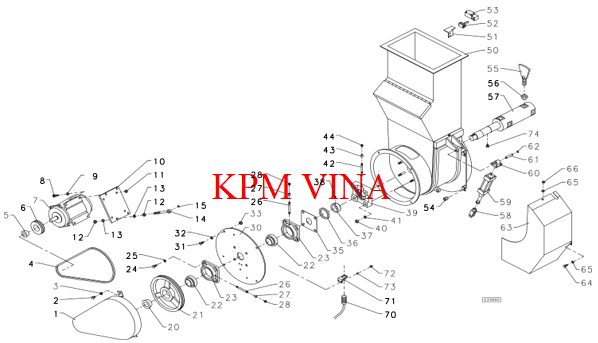

FORCED FEEDER STD. 2
| Pos. | S-M DK No. |
Description | No. off |
| 1 | 019576 | Guard for belt drive | 1 |
| 2 | 005867 | Hex. screw M10 x 16 DIN 933 | 3 |
| 3 | 000472 | Facet disc Ø10 DIN 125 A | 3 |
| 4 | 007529 | V-belt SPZ 1400 | 2 |
| 5 | 002961 | Taper bushing TL 1610 – Ø28 | 1 |
| – and others | Alt. | ||
| 6 | 019555 | V-belt pulley SPZ 2 Ø100 TL 1610 | 1 |
| 7 | 030134 | Motor ABB 2,2 kW, 1400 rpm. | 1 |
| – and others | Alt. | ||
| 8 | 016124 | Hex. screw M10 x 35 DIN 933 | 4 |
| 9 | 000472 | Facet disc Ø10 DIN 125 A | 4 |
| 10 | 019559 | Motor plate | 1 |
| 11 | 004724 | Nut M10 | 4 |
| 12 | 000466 | Nut M12 | 8 |
| 13 | 002688 | Facet disc Ø12 DIN 125 B | 8 |
| 14 | 008144 | Eyebolt M12 x 140 DIN 444 | 4 |
| 15 | 000671 | Lock ring U12 x 1,00 DIN 471 | 4 |
| 20 | 006738 | Taper bushing TL 2012 – Ø40 | 1 |
| 21 | 019593 | V-belt pulley SPZ 2 Ø280 TL 2012 | 1 |
| 22 | 005915 | Bearing UC 210 – Ø50 | 2 |
| 23 | 007674 | Bearing housing with 4 holes | 2 |
| 24 | 000590 | Hex. screw M12 x 30 DIN 933 | 4 |
| 25 | 002688 | Facet disc Ø12 DIN 125 B | 4 |
| 26 | 021857 | Nipple pipe 1/8″ x 120 | 2 |
| 27 | 008166 | Socket 1/8″RG L = 17 | 2 |
| 28 | 002382 | Grease nipple 1/8″RG straight | 2 |
| 30 | 019575 | Gable plate | 1 |
| 31 | 000823 | Hex. screw M12 x 35 DIN 933 | 4 |
| 32 | 002688 | Facet disc Ø12 DIN 125 B | 4 |
| 33 | 000466 | Nut M12 | 4 |
| 35 | 027872 | Plate for bearing sealing | 1 |
| 36 | 004357 | Sealing ring A 70 x 90 x 10 NB | 1 |
| 37 | 019591 | Wear ring, incl. pos. 38 | 1 |
| 38 | 019598 | Pivot screw M8 x 8 14,9 DIN 916 | 1 |
| 39 | 019590 | Housing for sealing ring | 1 |
| 40 | 004538 | Nut M12 A2 DIN 934 | 4 |
| 41 | 002688 | Facet disc Ø12 DIN 125 B | 4 |
| 42 | 021856 | Nipple pipe 1/8″ x 100 | 1 |
| 43 | 008166 | Socket 1/8″RG L = 17 | 1 |
| 44 | 006643 | Grease nipple 1/8″RG 45o | 1 |
| 50 | 019471 | Inlet screw, welded | 1 |
| 51 | 023234 | Hinging for key | 1 |
| 52 | 040181 | Key, revolvable XCSZ03 | 1 |
| 53 | 040252 | Safety position stop XCS A701 | 1 |
| 55 | 030038 | Mixing thread H113 M20 compl., incl. pos. 56 | 8 |
| 56 | 030465 | Nut M24 A2 | 8 |
| 57 | 019558 | Shaft for paddles | 1 |
| 58 | 023100 | Fork for air cylinder | 1 |
| 59 | 023099 | Air cylinder C52M-50-20-80 | 1 |
| 60 | 023101 | Swing hinging, MP4 | 1 |
| 61 | 000073 | Shaft Ø12 | 1 |
| 62 | 000671 | Lock ring U 12 x 1 A2 DIN 471 | 2 |
| 63 | 019560 | Guard for by-pass flap | 1 |
| 64 | 012889 | Hex. screw M8 x 12 A2 Din 933 | 2 |
| 65 | 016407 | Facet disc Ø8 A2 DIN 125 A | 4 |
| 66 | 004703 | Nut M8 | 2 |
| 70 | 011076 | Speed guard XSA-V12373, 24 V DC | 1 |
| 035666 | Speed guard XSA-V12801, 24-220 V AC | Alt. | |
| 71 | 019601 | Hinging for speed guard, incl. pos. 72-74 | 1 |
| 72 | 015508 | Hex. sccrew M6 x 14 DIN 933 | 2 |
| 73 | 000433 | Facet disc Ø6 DIN 125 B | 2 |
| 74 | 000124 | Hex. screw M12 x 16 DIN 933 | 1 |
