PM 919
Mô tả sản phẩm

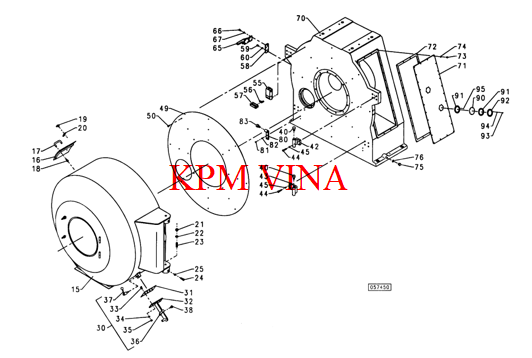

PELLET CHAMBER
| Pos. | S-M DK No. |
S-M USA No. |
Description | No. off |
| 15 | 068481 | Pellet chamber, 2-walled, incl. pos. 16-25 | 1 | |
| (PM919W and PM919XW) | ||||
| 056562 | Pellet chamber, 2-walled, incl. pos. 16-25 | Alt. | ||
| (PM919TW) | ||||
| 16 | 055726 | Hatch incl. Pos. 17-18 | 1 | |
| 17 | 000689 | Handle Elesa M243/140 | 1 | |
| 18 | 016528 | Hex. screw M8 x 50 A2 DIN 933 | 2 | |
| 19 | 026996 | Top nut M10 | 2 | |
| 20 | 000664 | Tension hinging | 2 | |
| 21 | 016804 | Lock nut M20 DIN 439 FZB | 2 | |
| 22 | 000702 | Facet disc Ø20 FZB DIN 125 B | 2 | |
| 23 | 031507 | Pivot screw M20 x 70 14.9 DIN 916 | 2 | |
| 24 | 005467 | Hex. screw M16 x 40 FZB DIN 933 | 8 | |
| 25 | 031506 | Lock nut M16 FZB DIN 439 | 8 | |
| 30 | 034818 | Knife, complete, incl. pos. 31-38 | (3) | |
| (PM919W and PM919XW) | ||||
| 035176 | Knife, complete, incl. pos. 31-38 (PM919TW) | Alt. | ||
| 31 | 034741 | Knife blade T4 B250 | 1 | |
| (PM919W and PM919XW) | ||||
| 035191 | Knife blade T3 B300 (PM919TW) | Alt. | ||
| 32 | 034611 | Knife handle | 1 | |
| 33 | 004143 | WA 91220 | Hex. screw M10 x 20 DIN 933 A2 | 4 |
| 34 | 000694 | Spring washer Ø10 A2 DIN 127 B | 4 | |
| 35 | 012888 | Facet disc ø10 A2 DIN 125 A | 4 | |
| 36 | 032553 | Stop sleeve | 1 | |
| 37 | 032529 | Tension grip GN 212.3-33-M16-40-E | 1 | |
| 38 | 031706 | Hand wheel Elesa WCT.32 | 1 |
| 40 | 032538 | WA 35710 | Tappet roller McGill CFH-2-5 | 2 | ||
| 42 | 032811 | MC 032811 | Hinge for pellet chamber top | 1 | ||
| 43 | 032815 | MC 032815 | Hinge for pellet chamber bottom | 1 | ||
| 44 | 005885 | Hex. screw M16 x 80 FZB DIN 933 | 8 | |||
| 45 | 044003 | Spring washer ø16 FZB DIN 127 B | 8 | |||
| 49 | 055810 | Rear plate for pellet chamber | 1 | |||
| 50 | 000822 | WA 54071 | Hex. screw M10 x 20 FZB DIN 933 | 23 | ||
| 55 | 025390 | Safety position stop Atlas 4 220 V, incl. | 1 | |||
| pos. 56 | ||||||
| 038910 | Safety position stop Atlas 4 110 V, incl. pos. 56 |
Alt. | ||||
| 034908 | Safety position stop Atlas 4 24 V, incl. pos. 56 |
Alt. | ||||
| 56 | 030576 | Key for postition stop | 1 | |||
| 57 | 021861 | Spring hinging for position stop | 1 | |||
| 58 | 032400 | Hinging for hook | 1 | |||
| 59 | 004367 | Cyl. Screw M10 x 25 A2 DIN 912 | 2 | |||
| 60 | 002687 | Facet disc Ø10 FZB DIN 125 B | 2 | |||
| 65 | 032527 | MB 032026 | Hook lock 2800/T2 Speedy-Blok | 1 | ||
| 66 | 013122 | WA 54071 | Cyl. Screw m10 x 20 A 2 DIN 912 | 8 | ||
| 67 | 002687 | Facet disc Ø10 FZB DIN 125 B | 8 | |||
| 70 | 084276 | Gear box | 1 | |||
| 71 | 032980 | MC 032980 | Side cover for gear box | 1 | ||
| 72 | 050585 | Gasket for side cover | 1 | |||
| 73 | 000822 | WA 60569 | Hex. screw M10 x 20 FZB DIN 933 | 26 | ||
| 74 | 000710 | WA 41713 | Spring washer ø10 FZB DIN 127 B | 26 | ||
| 75 | 039447 | Plug 1” BSP | 1 | |||
| 76 | 021396 | Bonded seal 1” | 1 | |||
| 80 | 038757 | Support for tappet roller | 1 | |||
| 81 | 002733 | Hex. screw M10 x 40 FZB DIN 933 | 2 | |||
| 82 | 000472 | Facet disc ø10 DIN 125 A | 2 | |||
| 83 | 051403 | Tappet roller McGill CF-2-5 | 1 | |||
| 90 | 030194 | Inspection glass | 2 | |||
| 91 | 017909 | Packing for inspection glass | 2 | |||
| 92 | 021919 | Flange for inspection glass | 2 | |||
| 93 | 027435 | Hex. screw M6 x 20 FZB DIN 933 | 12 | |||
| 94 | 000433 | Facet disc ø6 DIN 125 B | 12 | |||
